SOLA Digital Angle Finder

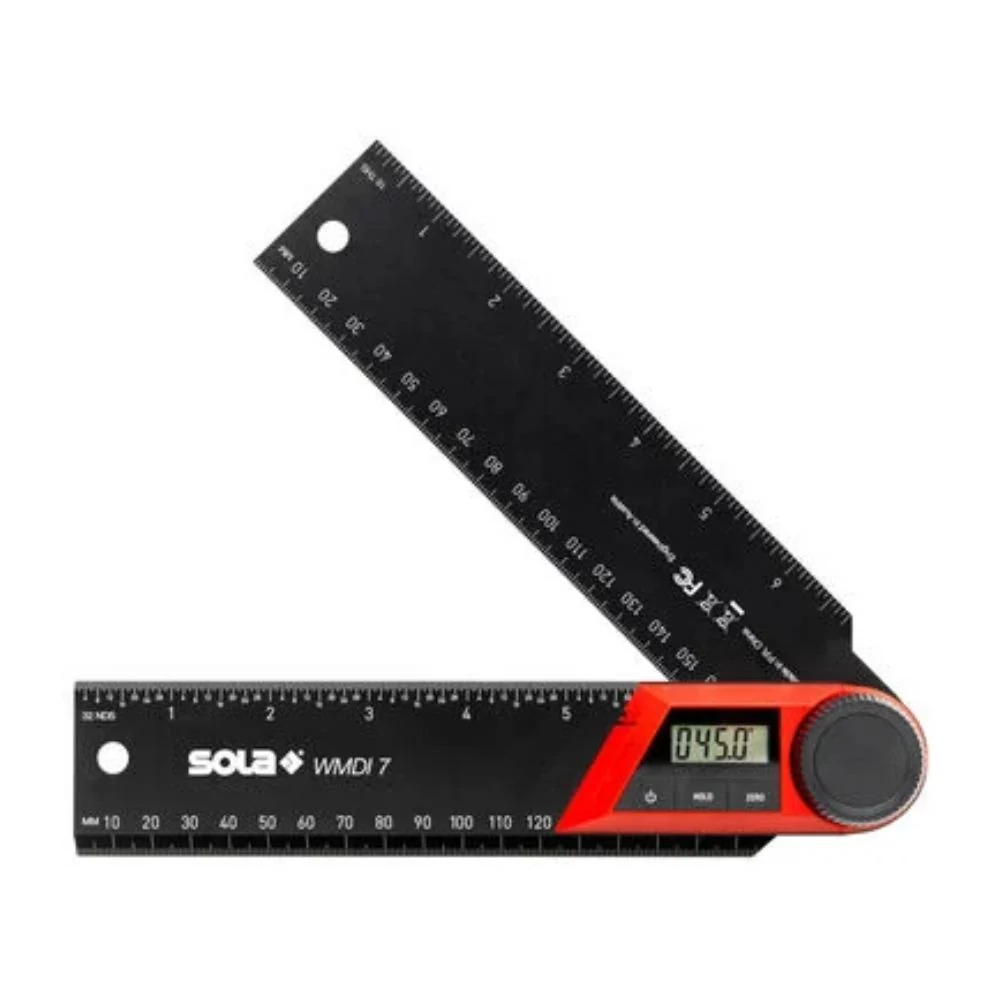

SOLA WMDI Digital Angle Finder – Precision Angle Measuring Tool in 7" and 19" Sizes

The SOLA WMDI Digital Angle Finder is a 2-in-1 digital angle measuring tool and precision ruler designed for contractors, tile installers, framers, and detail-focused DIYers. Available in 7-inch and 19-inch models, it accurately measures internal and external angles to ±0.3° and features etched linear scales in both inches and millimeters. With a durable aluminum frame, hold function, and zero calibration, the WMDI simplifies angle layout, replication, and measurement for everything from framing cuts to tile alignment.

Choose between two convenient sizes to suit your project needs:

• 7" Version (Total Length 14") – Compact and portable, ideal for tight workspaces and on-the-go tasks.
• 19" Version (Total Length 38") – Extended reach and stability, perfect for large surfaces and professional applications.



Key Features of the SOLA WMDI Digital Angle Finder

• 2-in-1 Digital Protractor and Ruler
  Integrated measuring scales (in/mm) with high-contrast etched markings for fast linear layout.

• ±0.3° Accuracy with Digital Display
  Clear LCD screen shows angle readings to 1 decimal point for precision work.

• Dual-Angle Measurement
  Capture and transfer both internal and external angles with one tool.

• HOLD & ZERO Functions
  Freeze readings in awkward spaces or calibrate from any reference angle on-site.

• Manual Locking Screw
  Secure the measured angle for easy marking and transferring.

• Integrated 45° Straightedge
  Check square and level with built-in versatility.

• Durable Aluminum Construction
  Reinforced arms resist warping under heavy use and conditions.

• Stop Edge for Stability
  Helps the tool stay anchored during marking or adjustment.

Choose the Size That Fits Your Workflow

• 7-Inch Model (14" Total Length)
  Compact and portable—perfect for cabinetry, tight tile layouts, and mobile tasks.

• 19-Inch Model (38" Total Length)
  Extended reach and added stability for framing, flooring, and large-format tiling.

Specs Summary

• Accuracy: ±0.3°

• Display: LCD with 1 decimal point

• Measurement Range: 0° to 180°

• Power: CR2032 battery (included)

• Functions: HOLD, ZERO, manual lock

• Battery Compartment: Childproof, IEC 62368-1:2018 compliant

• Materials: Reinforced aluminum with etched scales

• Sizes: 7” arms (14” total) or 19” arms (38” total)
